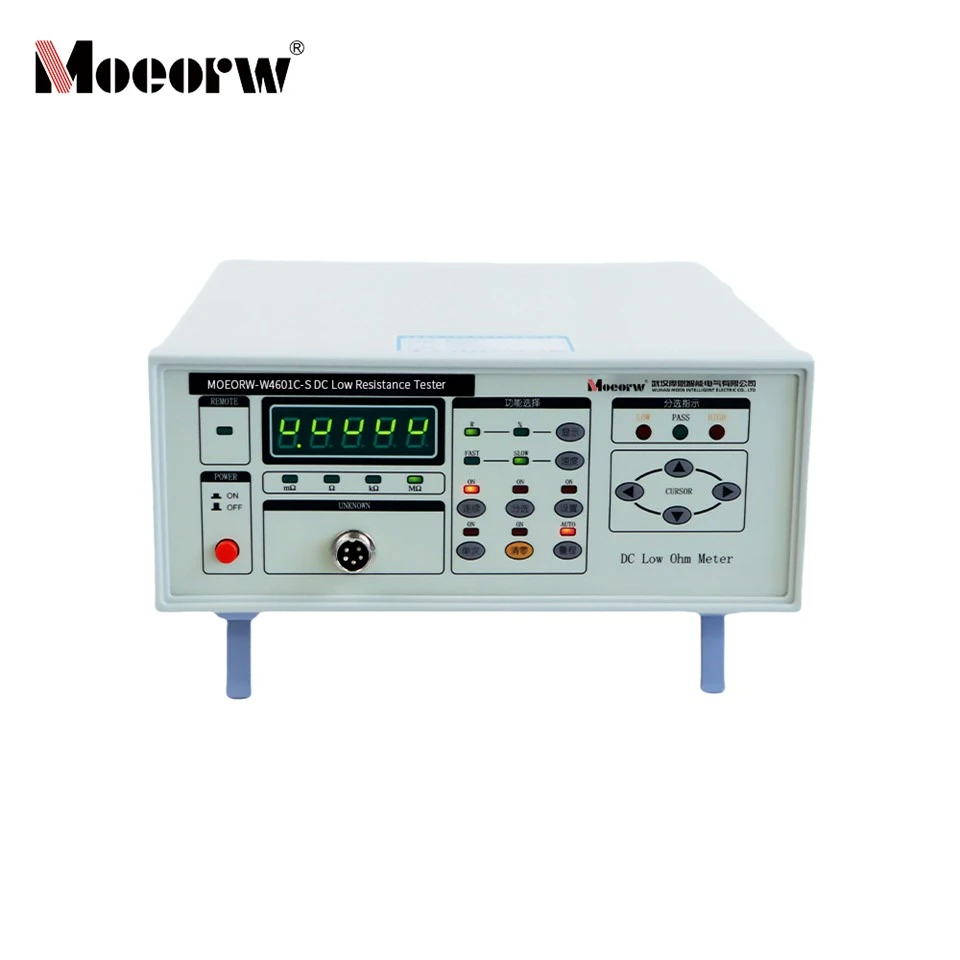

MOEORW-W4601C-S DC Low Resistance Tester

Lub MOEORW -W4601C-S yog qhov ntse ntseDC low resistance testernrog rau kev ntsuas dav dav thiab qhov tseeb siab. Nws nta kub them nyiaj, tsis siv neeg sorting, thiab txhawb automated docking.

Tsim nyog rau kev ntsuas kev tiv thaiv ntawm cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob, nrog rau kev hloov pauv tooj liab thiab cov hlau tsis zoo, thiab yoog mus rau kev sim ntsuas ntawm cov kab ntau lawm.

Khoom Taw Qhia

MOEORW-4601C-S10A DC low resistance testeryog qhov ntse, dav -ntau, thiab meejDC tsis kam kuajntsuas qhov tsim nyog rau kev ntsuas cov tooj liab tsis kam ntawm transformers thiab inductors, relay tiv thaiv, hloov thiab connector tiv thaiv, hlau tsis kam, tivthaiv solder sib koom tiv thaiv, luam Circuit Court board kab thiab solder qhov tsis kam, thiab hlau flaw nrhiav kom tau.

Lub MOEORW-4601C-S DC tsis tshua muaj zog tester tuaj yeem ntsuas qhov tsis kam ntawm 1uΩ txog 2MΩ. Nws ntxiv qhov kub thiab txias ua haujlwm rau cov tsoos DC tsis tshua muaj zog tester, tso cai rau kev ntsuas qhov tseeb ntawm qhov ntsuas qhov ntsuas ntawm qhov ntsuas kub ntawm chav tsev kub. Nws yog siv rau kev tswj cov chaw taws teeb, nrhiav cov ntaub ntawv, thiab tsim cov tshuab automated sorting rau cov kab ntau lawm.

Lub tshuab no tau nruab nrog tus tuav tswj kev ua haujlwm thiab RS232C interface. Hauv kev xaiv hom, nws tuaj yeem xaiv qhov ntsuas qhov ntsuas tsis kam lossis qhov feem pua, thiab tuaj yeem txiav txim siab seb tus nqi tiv thaiv puas siab dhau, qis dhau, lossis cov khoom zoo raws li cov nqi teev tseg. Ib tug sorting interface kuj nyob rau ntawm lub rear vaj huam sib luag. Enabling no interface xa cov teeb liab pib, ua rau lub ntsuas ntsuas ntsuas. Cov txiaj ntsig kev xeem yog ib txhij tso tawm los ntawm lub vaj huam sib luag nram qab no. Qhov teeb liab interface no tso cai rau lub tshuab txuas nrog cov cuab yeej siv tshuab ua haujlwm rau kev ntsuas kev siv tshuab, yog li txhim kho qhov kev ntsuas automation muaj peev xwm ntawm cov kab ntau lawm.

Khoom Parameter (Specification)

(18℃~ 28℃RH Tsawg dua lossis sib npaug li 75%)

ntau	20mΩ	200mΩ	2Ω	20Ω	200Ω	2kΩ	20KΩ	200kΩ	2MΩ	9-KOJ
raug	±0.1%+3	±0.05%+2		±0.05%+2						±% RDC + lus
Qhib Circuit Court voltage	<1.0V				<4V					DC
daws teeb meem	1uΩ	10uΩ	100uΩ	1mΩ	10mΩ	100mΩ	1Ω	10Ω	100Ω
Kub coefficient	100 ppm	50 ppm		50 ppm						yuam kev

Zaub	Ntau tshaj 19,999 cim, LED
Ua rau	Nruam / Ib leeg
Kuaj	4 terminals (2 qhov ntsuas qhov ntsuas hluav taws xob, 2 lub tshuab tsav tam sim no).
Kev ntsuas ntau	Automatic/Manual
Kev txheeb	Sorting ON/OFF
Kev ntsuas ceev	Slow 15 zaug / thib ob, ceev 30 zaug / thib ob
KHOOM	Pib, PASS, HIGH, LOW, thiab EOT cov cim.
Ib puag ncig	Ua haujlwm kub
0 ~ 40 degree, cia kub	-40℃~ +75℃.
Ua haujlwm av noo	0 ~ 85% RH.
Fais fab mov	220VAC 50Hz

Khoom feature thiab daim ntawv thov

Lub tshuab no muaj cov yam ntxwv hauv qab no:

Zaub: High-brightness digital tube zaub
Kev ntsuas dav dav: 20mΩ ~ 2MΩ, 9 ntau yam.
Qhov tseeb qhov tseeb: ± 0.05% + 2 tus lej
Kev ntsuas ceev yog hloov pauv: qeeb 15 zaug / thib ob, nrawm 30 zaug / thib ob.
Tus neeg siv tus kheej-calibration muaj nuj nqi: tag nrho-ntau yam luv-circuit zeroing muaj nuj nqi.
sorting muaj nuj nqi: Ua - nyob rau hauv sib piv nrog sorting functions LOW, PASS, HIGH, FAIL thiab suab tso zis.
Cov txheej txheem tso saib: Tsis kam nyeem ncaj qha / feem pua tus nqi / ntsuas kub.
Output interfaces: Handler sorting interface, RS232C (RS485) kev sib txuas lus interface

Kev tsim tawm cov ntsiab lus

◆ Kev ntsuas hluav taws xob hauv hluav taws xob: transformer thiab inductor tooj liab tsis kam, relay, hloov, connector tiv thaiv, tivthaiv solder sib koom ua haujlwm kev sim.

◆ Kev tshuaj xyuas Circuit Court board: Kev ntsuas qhov ntsuas ntawm cov kab hluav taws xob luam tawm thiab cov qhov taub

◆ Kev Tshuaj Xyuas Hlau / Hlau: Hlau Resistance Test, Metal Flaw Detection

◆ Muaj automation: Automated sorting ntawm cov kab ntau lawm, nrog interfaces rau kev ntsuas tsis siv neeg.

Lub Tuam Txhab Txuj Ci

FAQ

Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?

Peb yog cov chaw tsim khoom ntawm cov khoom siv kuaj.

Q: Cov kev pab cuam tom qab muag zoo li cas?

A: Lub sijhawm lav yog 12 lub hlis. Tom qab lub sij hawm warranty, peb kuj muab kev pab them nqi kho mob los yog kev pab cuam lub neej.

Q: Cov kev pab cuam tom qab muag zoo li cas?

A: Lub sijhawm lav yog 12 lub hlis. Tom qab lub sij hawm warranty, peb kuj muab kev pab them nqi kho mob los yog kev pab cuam lub neej.

Q: Yuav ua li cas txog kev thauj mus los?

A: Nws nyob ntawm koj qhov kev xav tau. Peb tuaj yeem xa tuaj rau koj lub tshav dav hlau los ntawm huab cua, mus rau koj qhov chaw nres nkoj los ntawm hiav txwv, lossis rau koj lub chaw ua haujlwm los ntawm courier.
Peb kuj lees txais kev koom tes nrog koj tus neeg sawv cev shipping.

Q: Puas yog koj cov keyboard, interface, software, thiab phau ntawv txhais lus Askiv?

A: Yog, yog tias koj siv cov lus Askiv version ntawm cov keyboard, interface, software, thiab phau ntawv thiab xav tau lwm hom lus, thov hu rau peb kom paub meej.
