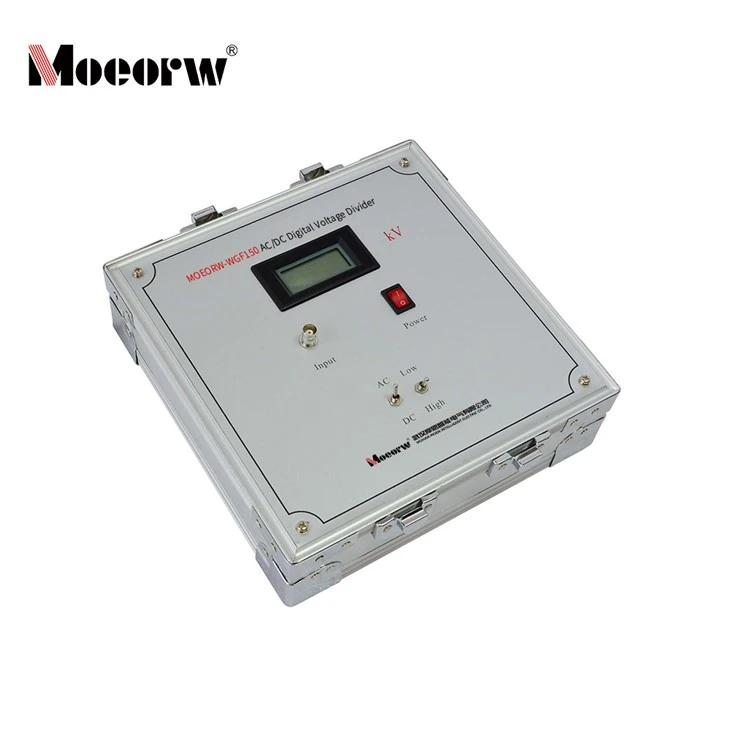

150kV AC DC Digital Voltage Divider

Khoom Taw Qhia

Cov khoom no yog lub siab- ntsuas qhov ntsuas hluav taws xob uas siv lub zog tiv taus-capacitive sib npaug- muaj peev xwm tiv thaiv hluav taws xob faib hluav taws xob. Pulse high voltage, xob laim high voltage, thiab lub zog zaus high voltage yog nws cov kev siv tseem ceeb. Nws yog qhov pom zoo hloov pauv rau siab -voltage AC / DC voltage dividers. Nws yog qhov zoo tshaj plaws -voltage ntsuas cov cuab yeej rau cov chaw tsim hluav taws xob, cov chaw tsim hluav taws xob, cov chaw tsim khoom siv hluav taws xob siab -voltage hluav taws xob, thiab siab -voltage testing labs vim nws txoj haujlwm ncaj nraim, yooj yim- rau- siv cov zaub, qhov tseeb siab, me me, thiab lub teeb yuag.

Los ntawm kev siv cov ntsuas hluav taws xob, qhov hluav taws xob hluav taws xob AC / DC txuas nrog lub siab - qhov ntsuas hluav taws xob ntsuas hluav taws xob, tso cai rau kev nyeem ntawv nyob deb thiab yooj yim. Cov koob no siv cov cuab yeej tshwj xeeb tiv thaiv kom txo tau siab -voltage cuam tshuam ntawm kev nyeem ntawv, ua rau muaj kev ruaj ntseg zoo thiab linearity. Nws muaj ib tug siab input impedance thiab zoo linearity.
Tus qauv tsim txo qis sab hauv ib feem tawm thaum ua tiav kev tsim kho ntau dua, qhov hnyav dua, thiab muaj kev cia siab ntxiv los ntawm kev siv cov khoom siv muab tub lim. Nws yog qhov txav tau yooj yim heev vim nws qhov me me thiab lub teeb yuag, uas ua rau ntawm - qhov chaw sim ua haujlwm yooj yim dua.

Khoom Parameter (Specification)

Khoom Txheem	DL/T846.1-2004
AC ntsuas hom	Kev ntsuas RMS tseeb, ntsuas qhov siab tshaj plaws, ntsuas qhov nruab nrab
Qhov tseeb	AC: 1.0% kev nyeem ntawv ± 0.1; DC: 0.5% kev nyeem ntawv ± 0.1
Insulating nruab nrab	Qhuav- hom khoom siv dielectric
Ib puag ncig tej yam kev mob	Kub: -10 ℃ to 40 ℃ ; Cov av noo; Tsawg dua lossis sib npaug li 70% RH
Voltage Dividing Ratio	N=1000:1

Khoom feature thiab daim ntawv thov

1. Kev ntsuas dav dav:

Haum rau ntau qhov xwm txheej, nws ntsuas pulses, xob laim tawm tsam, thiab lub zog hluav taws xob ntau zaus.

2. Yooj yim rau siv:

Yooj yim-rau-siv LCD zaub rau xaiv AC/DC ntsuas, muaj peev xwm nyeem tau tej thaj chaw deb

3. Ua raws li qhov tseeb

1.0% ntawm kev nyeem ntawv ± 0.1 rau AC qhov tseeb, 0.5% ntawm kev nyeem ntawv ± 0.1 rau DC qhov tseeb, thiab cuam tshuam- tiv thaiv kev siv tshuab

4. Dependable thiab portable:

Tsawg ib feem tawm, lub teeb yuag, me me, thiab cov khoom ntim tuaj txawv teb chaws

5. Yooj yim calibration thiab tu:

Ib qho yooj yim txij nkawm txhua hnub; teb calibration yog ua tau rau kev ua yuam kev nyob rau hauv qhov tseeb yam tsis tas yuav tsum tau lub Hoobkas rov qab.

6. Adaptability rau ib puag ncig:

Ua haujlwm feem ntau ntawm qhov kub ntawm -10℃thiab 40℃thiab cov av noo qis dua 70%.

Kev tsim tawm cov ntsiab lus

MEFRC-W150kV AC/DC Digital Voltage Divider yog tsim los siv rau hauv high-voltage testing labs, substations, power plants, and production facilities for high-voltage electronic devices. Nws yog siv los ntsuas lub zog zaus high voltage, xob laim high voltage, thiab mem tes high voltage.

Lub Tuam Txhab Txuj Ci

FAQ

1) Cov kauj ruam tseem ceeb dab tsi yuav tsum ua kom tiav ua ntej siv MEFRC{1}}W150kV AC/DC Digital Voltage Divider?

Teb: Ua ntej, ua kom ruaj ntseg hauv av ntawm qhov sib faib hauv av kom tsis txhob muaj qhov hluav taws xob siab dhau mus txog lub 'meter' vaj tse thiab ua rau hluav taws xob poob siab. Tom ntej no, txuas lub siab -voltage lead saum toj ntawm lub nplhaib sib npaug thiab ceev nws nrog lub davhlau ya nyob twg kom ntseeg tau tias cov hmoov txhuas tsis protrude los yog nqa (yog tias ua tau, muab tso rau hauv cov ntaub thaiv hlau kom txo kev cuam tshuam). Thaum kawg, txuas lub teeb liab connector ntawm lub divider mus rau lub LCD zaub taub hau. Tsuas yog tom qab ua tiav cov kev sib txuas no, koj yuav tsum qhib lub hwj chim thiab xaiv hom ntsuas.

2) Puas muaj qhov tshwj xeeb uas yuav tsum tau ua ua ntej txiav cov cables tom qab ntsuas DC voltage nrog MEFRC -W150kV AC / DC Digital Voltage Divider?

Teb: Yog, cov cai tshwj xeeb siv tau. Tom qab DC ntsuas, thawj zaug xyuas tias LCD zaub nyeem kwv yees li "0.XXX". Yog hais tias cov khoom xeem muaj xws li lim capacitors, tag nrho tso tawm ua ntej. Thaum tus faib qhov kev nyeem ntawv mus txog xoom, siv tus pas nrig tawm kom tso tawm qhov faib. Tsuas yog tom qab ua tiav cov kauj ruam no koj tuaj yeem txuas ntxiv nrog kev txiav cov cables lossis cov haujlwm tom ntej.

3) Yuav ua li cas MEFRC{1}}W150kV AC/DC Digital Voltage Divider yuav tsum tau khaws cia thaum lub sij hawm ntev - khaws cia los tiv thaiv cov cuab yeej?

Teb: Ua ntej, xa cov khoom xa rov qab mus rau nws cov ntaub ntawv aluminium alloy thiab muab cia rau hauv qhov chaw qhuav kom tsis txhob ya raws. Qhov thib ob, lub LCD zaub muaj ib qho ua tau - nyob rau hauv lithium roj teeb uas yuav tsum tau them tsawg kawg ib zaug ib lub hlis rau kwv yees li 3 teev los tiv thaiv lub roj teeb puas los ntawm kev tso tawm tob. Tsis tas li ntawd, tuav lub cuab yeej nrog kev saib xyuas kom tsis txhob muaj kev cuam tshuam lossis compression. Ua kom huv ntawm qhov chaw kom tsis txhob muaj kab mob los ntawm kev cuam tshuam kev ua haujlwm.
