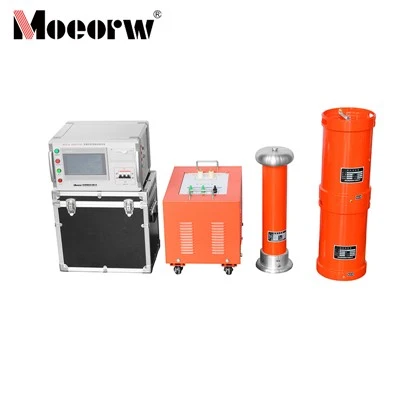

108kva-108kv series resonance xeem ntaus ntawv

Khoom Taw Qhia

MEXB-W108kVA-108 Variable Frequency Series Resonance Test Device yog tsim los rau AC tiv thaiv qhov ntsuas hluav taws xob ntawm 10kV thiab 35kV cables, 35kV main transformers, 10kV thiab 35kV keyboards, insulators, 5 subkV powers, thiab lwm yam. cov tshuab hluav taws xob. Nrog rau kev siv dav dav, nws ua haujlwm zoo tshaj plaws tiv thaiv hluav taws xob ntsuas kev daws teeb meem rau lub xeev, nroog, thiab lub nroog-theem high-voltage test departments, nrog rau kev teeb tsa hluav taws xob, kev saib xyuas, thiab kev sim engineering units.

Lub kaw lus feem ntau muaj cov khoom siv hluav taws xob sib txawv, kev hloov pauv hloov pauv, cov reactors, qhov hluav taws xob hluav taws xob faib hluav taws xob, thiab cov nyiaj them poob haujlwm.

Khoom Parameter (Specification)

(1) MEXB- denotes chaw tsim tshuaj paus code 108 denotes siab tshaj plaws rated tso zis muaj peev xwm nyob rau hauv kVA / 108 denotes tso zis voltage ntsuam xyuas nyob rau hauv kV
(2) Technical Specifications rau MEXB-108kVA / 108kV Variable Frequency Series Resonance Withstand Voltage Test Device
1. Rated Voltage
27kV-Suitable rau AC withstand voltage kuaj ntawm 10kV cables; Ua haujlwm zaus	30-300Hz, xeem voltage Tsawg dua los yog sib npaug rau 22kV, xeem ntev 5 feeb;
54kV-Suitable rau AC withstand voltage kuaj ntawm 35kV cables; Ua haujlwm zaus	30-300Hz, xeem voltage Tsawg dua los yog sib npaug rau 52kV, xeem ntev 60 feeb;
81kV-Suitable rau AC withstand voltage kuaj ntawm 35kV lub ntsiab transformers; Ua haujlwm zaus	45-65Hz, xeem voltage tsis tshaj 68kV, xeem ntev 1 min;
108kV-Suitable AC withstand voltage testing of 35kV switchgear, insulators, busbars, and other substation equipment; Ua haujlwm zaus	30-300Hz, kuaj voltage tsis tshaj 100kV, xeem ntev 1 min;
54kV-Ua tau raws li AC tiv thaiv qhov ntsuas qhov xav tau rau 10kV switchgear, insulators, busbars, thiab lwm yam khoom siv substation; Ua haujlwm zaus	30-300Hz, xeem voltage Tsawg dua los yog sib npaug rau 42kV, xeem ntev 1 min;
27kV-Ua tau raws li AC tiv thaiv qhov ntsuas qhov ntsuas rau 10.5kV thermal fais fab fais fab; Ua haujlwm zaus	45-65Hz, xeem voltage Tsawg dua los yog sib npaug rau 23kV, xeem ntev 1 min;
Output voltage waveform distortion tus nqi	<1.0%
Tso cai rau lub sijhawm ua haujlwm tas mus li	60 feeb raws li kev ntsuas ntsuas;
Ntaus qhov zoo tshaj plaws	Q>50
Qhov zoo tshaj plaws thaum lub sij hawm tag nrho -load kuaj ntawm GIS, keyboards, thiab lwm yam.	Q>20 (load-nyob ntawm)
Input zog	Peb -theem 380V lossis ib zaug -theem 220V
Kev hloov kho ntau zaus	30Hz txog 300Hz
Kev ntsuas qhov tseeb	1.5%
Kev tiv thaiv muaj xws li overvoltage, overcurrent, thiab xoom- txoj hauj lwm pib
(III) Kev Ua Raws Cai	Cov Khoom Siv Hluav Taws Xob Txais Kev Xeem Txuj Ci rau Hluav Taws Xob Installation Engineering GB50150-2006
High -Voltage Resonance Test Equipment	DL/T 849.6-2004
Reactors	GB10229.88
Kev Tiv Thaiv Kev Ntsuas Cov Khoom Siv Hluav Taws Xob	DL/T596-1996
Coupling Capacitors thiab Capacitive Dividers	IEC 358 (1990)
(IV) Main Equipment Configuration thiab Technical Parameters
Ib qho kev hloov pauv ntau zaus fais fab mov
Rated zog	6 kW;
Input voltage	Peb-theem 380V lossis Ib zaug-theem 220V ± 5%, 50Hz
Cov zis hluav taws xob	Adjustable 0-400V
Tso zis zaus	30-300Hz
Adjustable nyob rau hauv	0.1Hz kauj ruam
Zaus Tsis ruaj khov	Tsawg dua lossis sib npaug li 0.02%
Tso zis tam sim no	0–15A
High-voltage reactors (plaub units tag nrho):
Rated ua haujlwm voltage	27kv ua
Rated ua haujlwm tam sim no	1A
Rated inductance	110H
Lub sijhawm ua haujlwm tsis tu ncua	60 feeb
Kub nce	<65K
Ua haujlwm zaus	30 ~ 300Hz
3. Excitation transformer (ib chav tsev)
Rated peev	6 kWv
Input voltage	400V
Cov zis hluav taws xob	1.5/3/6 kV TSI
Tso zis tam sim no	4/2/1A
Capacitive Divider (ib chav)
Tus kheej -Kev muaj peev xwm	1000 pF
Rated Voltage	100kV ua
Kev khiav hauj lwm zaus	30-300Hz
Tsis paub meej	1.5%
Rated Voltage	100 kV / 1000 pF
Kev them nyiaj yug Capacitor (ib chav tsev) (tso tawm 35kV)
Tus kheej -capacitance	10000 pF
Rated voltage	70kv ua
Ua haujlwm zaus	30-300Hz
Tsis paub meej	1.5%

Khoom feature thiab daim ntawv thov

1. Lub peev xwm ntawm lub zog yuav tsum tau txo qis. Cov khoom siv hluav taws xob resonant tsim cov khoom siv hluav taws xob siab thiab cov tam sim no loj los ntawm kev sib hloov ntawm cov resonant reactor thiab lub peev xwm ntawm cov qauv kuaj. Nyob rau hauv tag nrho cov system, lub hwj chim mov tsuas yog yuav tsum tau muab lub active zog noj feem. Yog li, lub zog xav tau rau kev sim tsuas yog 1 / Q ntawm lub peev xwm xeem.

2. Cov khoom hnyav thiab ntim tau txo qis. Cov khoom siv hluav taws xob resonant tshem tawm cov khoom loj loj - lub zog hluav taws xob tswj hluav taws xob thiab cov pa siab siab - lub zog fais fab - zaus ntsuas transformers. Ntxiv mus, lub resonant excitation fais fab mov yuav tsum tsuas yog 1/Q ntawm lub peev xwm xeem, drastic txo lub cev nyhav thiab ntim -feem ntau mus rau 1/10 mus rau 1/30 ntawm cov pa xeem cov khoom.

3. Txhim kho qhov tso zis voltage waveform. Lub resonant fais fab mov ua hauj lwm raws li ib tug resonant lim Circuit Court, zoo mitigating output voltage distortion los ua ib tug siab - zoo sinusoidal waveform. Qhov no tiv thaiv kev ua txhaum ntawm cov qauv kuaj uas tshwm sim los ntawm kev sib haum xeeb peaks.

4. Tiv thaiv kom luv luv - Circuit Court tam sim no hlawv puas ntawm cov ntsiab lus txhaum. Nyob rau hauv series resonance hom, thaum lub rwb thaiv tsev tsis muaj zog nyob rau hauv cov qauv kuaj lov, lub Circuit Court tam sim ntawd detunes, ua rau lub voj tam sim no sai txo mus rau 1 / Q ntawm qhov kev sim tam sim no. Nyob rau hauv sib piv, thaum lub sij hawm withstand voltage xeem siv parallel resonance los yog sim transformers, lub breakdown tam sim no surges los ntawm kaum tawm zaus. Muab piv rau ob, qhov luv -circuit tam sim no txawv ntawm qhov tawg tam sim no ntau pua zaus. Yog li ntawd, series resonance zoo nrhiav cov rwb thaiv tsev tsis muaj zog yam tsis muaj kev pheej hmoo ntawm luv luv -circuit tam sim no hlawv kev puas tsuaj rau qhov txhaum.

5. Tsis muaj rov qab overvoltage tshwm sim. Thaum cov qauv kuaj tau tawg, qhov poob ntawm resonance tej yam kev mob ua rau lub siab voltage ploj mus sai sai, tua lub arc tam sim ntawd. Cov txheej txheem rov qab voltage yog ncua ntev, tso cai rau lub sijhawm txaus los txiav lub hwj chim ua ntej qhov hluav taws xob flashover rov qab los. Qhov kev rov qab no yog ib qho kev sib txuas ntawm cov txheej txheem ntawm lub zog tsub zuj zuj, tus cwj pwm los ntawm nws lub sijhawm ntev thiab tsis ua tiav ntawm ib qho kev rov qab overvoltage.

Kev tsim tawm cov ntsiab lus

1. 10kV thiab 35kV Cable AC Withstand Voltage Test

2. 35kV Main Transformer AC Withstand Voltage Test

3. AC Withstand Voltage Test rau 10kV thiab 35kV Switchgear, Insulators, Busbars, thiab lwm yam khoom siv substation

4. 10.5kV Thermal Generator AC Withstand Voltage Test

Lub Tuam Txhab Txuj Ci

FAQ

1) Dab tsi yog qhov tseem ceeb ntawm MEXB-W108kVA/108kV Variable Frequency Series Resonance Withstand Voltage Test Device?

Teb: Cov khoom tseem ceeb muaj xws li cov khoom siv hluav taws xob sib txawv, kev hloov pauv hloov pauv, siab -voltage reactors (plaub units tag nrho), capacitive voltage divider, them nyiaj capacitors, thiab cov txheej txheem kuaj. Cov khoom no ua haujlwm ua ke los ua AC tiv thaiv qhov ntsuas hluav taws xob.

2) MEXB hom kev ua haujlwm dab tsi ua rau MEXB-W108kVA/108kV Variable Frequency Series Resonance Withstand Voltage Test Device muab, thiab lawv yuav tsum tau siv dab tsi?

Teb: Cov cuab yeej muaj peb hom kev khiav hauj lwm: hom tsis siv neeg puv, hom phau ntawv, thiab pib-tuning phau ntawv voltage- nce hom. Cov qauv no tso cai rau cov neeg siv hloov pauv yooj yim raws li nyob ntawm - qhov chaw kuaj mob thiab kev nyiam ua haujlwm, ua kom muaj txiaj ntsig zoo rau kev sim thiab yoog raws.

3) Cov kev cai tseem ceeb dab tsi yuav tsum tau ua raws li thaum siv MEXB-W108kVA/108kV Variable Frequency Series Resonance Withstand Voltage Test Device?

Teb: Cov kev cai tseem ceeb ntawm kev nyab xeeb muaj xws li: Siv cov khoom siv hluav taws xob tshwj xeeb uas ua tau raws li cov lus qhia tshwj xeeb; Cov cuab yeej siv lub davhlau ya nyob twg hauv av yuav tsum muaj kev ntseeg siab hauv av, thiab cov av hauv av yuav tsum raug txheeb xyuas ua ntej txuas cov tswv yim / tso tawm terminals; xeem cov thawj coj yuav tsum tsis txhob arbitrarily txuas los yog disconnected los ntawm nyob terminals; Kev ua haujlwm raug txwv tsis pub siv lub ntsuas ntsuas, hauv qhov chaw ntub dej, lossis hauv qhov chaw tawg; yog tias muaj qhov tsis txaus ntseeg tshwm sim, cov cuab yeej yuav tsum raug tshuaj xyuas los ntawm cov neeg ua haujlwm saib xyuas cov chaw tsim khoom- tsis txhob disassemble lossis ua haujlwm txuas ntxiv.
